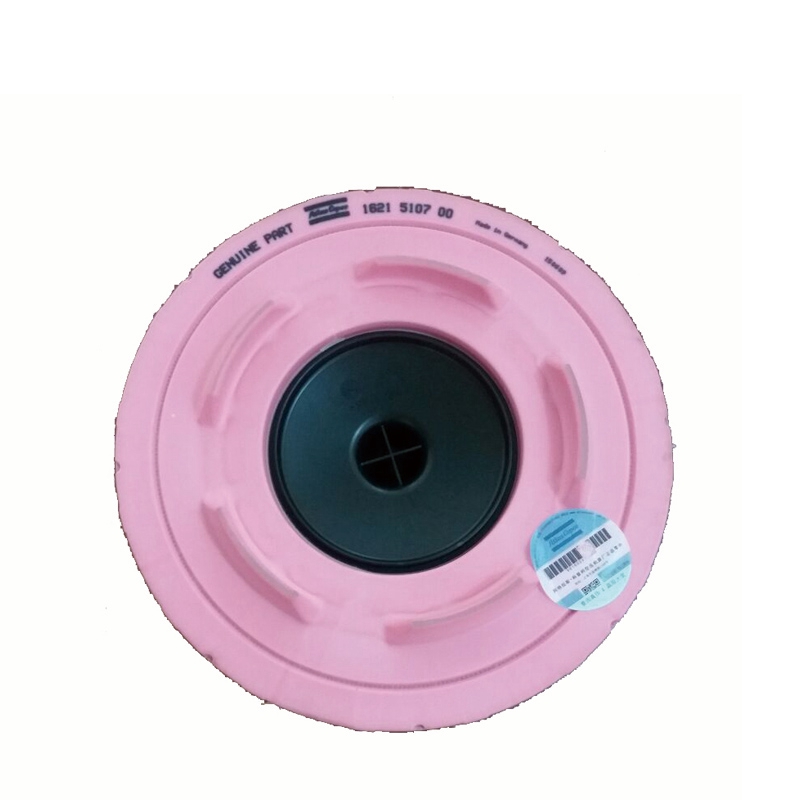

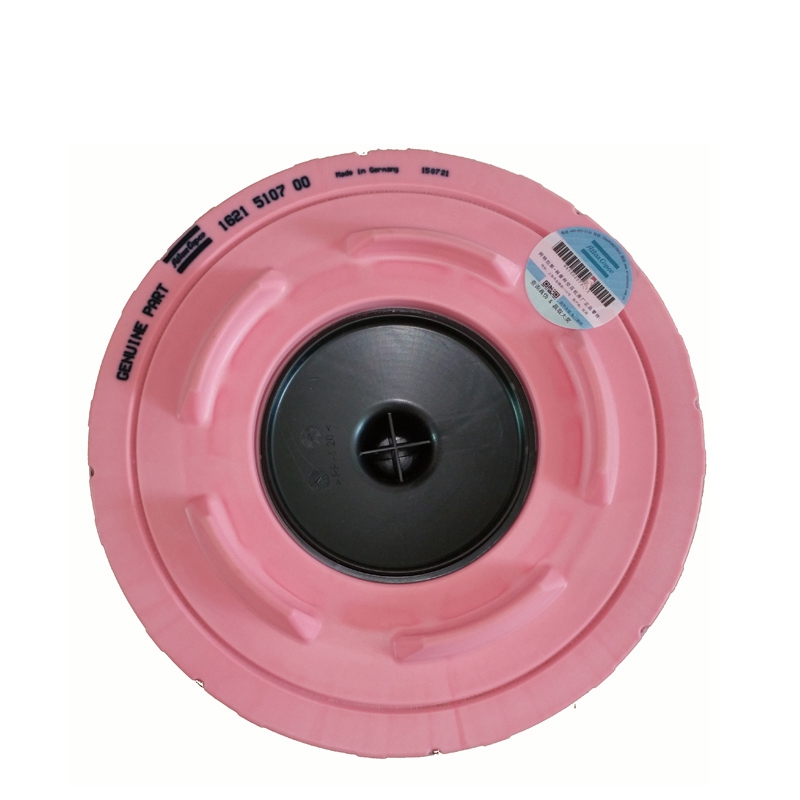

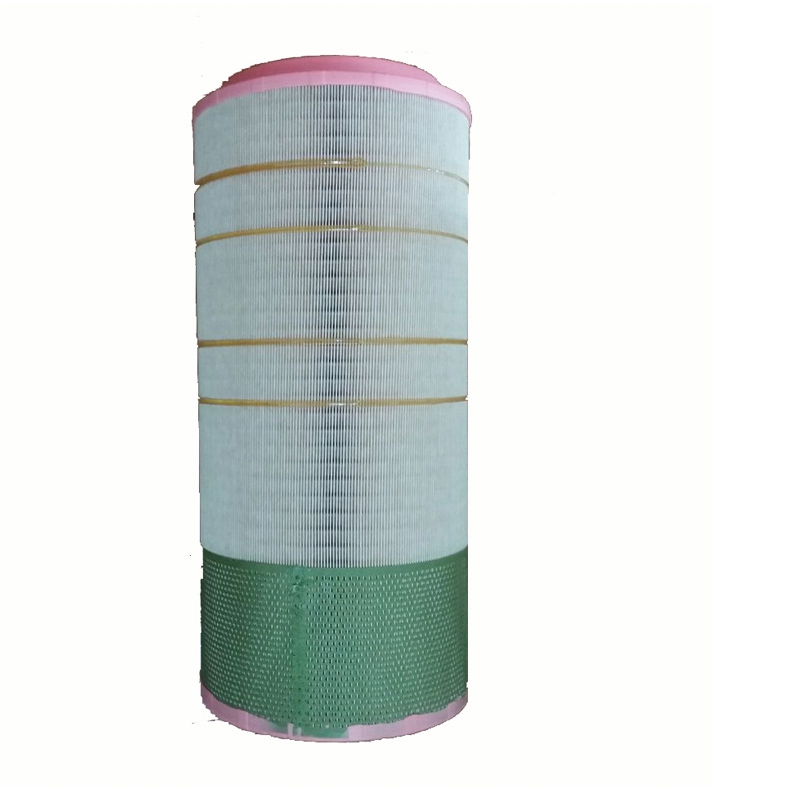

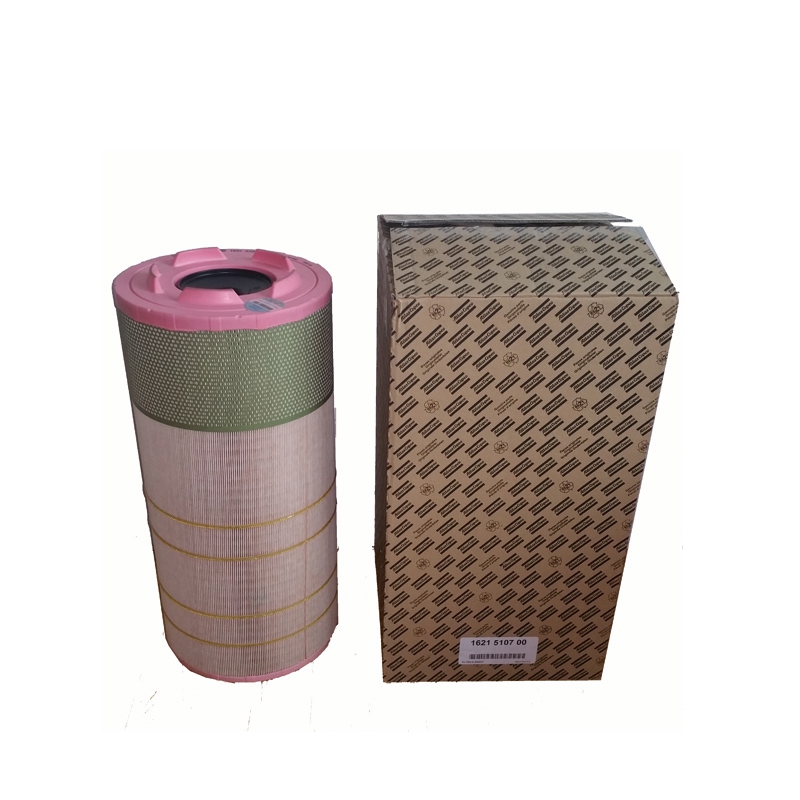

Original Atlas Copco Air Compressor Air Filter 1621510700

Short Description:

Function: The air filter is installed in the unloading valve of the air compressor. Its function is to filter the atmosphere into relatively clean air that meets the requirements of the air compressor.

Filter efficiency: dust particles 1um up to 98%, 2um up to 99.5%, 3um up to 99.9%.

Replacement cycle: Usually every 2000 hours, depending on the specific use environment increase or decrease, when the air filter pressure difference displayed on the control panel is lower than -0.05bar, it will alarm, it needs to replace the air filter element in time.

Send email to us

Product Detail

Product Tags

Parts associated with air filters

Unloading valve:

1. When the unloading valve is fully opened, the air compressor takes in 100% air.
2. When the unloading valve is completely closed, air compressor 0 intake. In the unloading state, 10% of the compressed air is recirculated

Air filter differential pressure sensor

1. Detect the difference between the internal and external pressure of the air filter to ensure the normal intake of the air compressor.
2. The maximum value detected by the air filter pressure difference sensor is -0.05bar, which will cause blockage alarm.
Air filter provides clean air for your air compressor to avoid damaging the equipment. Atlas Copco as an original equipment manufacturer, original parts are designed to meet a variety of harsh conditions to avoid the loss of unexpected downtime.

How to purchase Atlas Copco original parts at a better price?
Seadweer has been working with Atlas Copco for more than 20 years, selling only original parts and selling more than $10 million of parts per year to customers around the world, so we have a lower discount and bring more profit for our partners.

More Atlas Copco air Filter models are as follows:

Power	Model	Name	Part No.	Quantity
11-30KW	GA11、GA15、GA18、GA22、GA30	Air Filter	1613872000	1
30-55KW (2000-2005）	GA30、GA37-8.5/10/13、GA45-13	Air Filter	1613740700	1
30-55KW (2000-2005）	GA37-7.5、GA45-7.5/8.5/10、GA55C	Air Filter	1613740800	1
55-90KW	GA55	Air Filter	1613950100	1
55-90KW	GA75～GA90C	Air Filter	1613950300	1
11-18.5KW	GA11+、GA15+、GA22+、GA30、GA18+	Air Filter	1613872000	1
11-22KW	GA11-GA15-GA18-GA22	Air Filter	1612872000	1
18-22KW	G18-G22	Air Filter	1092200283	1
30-45KW	GA30+-GA37-GA45	Air Filter	1613740700	1
30-75KW	GA30+、GA37、GA45、GA37+、GA45+	Air Filter	1613740800	1
30-75KW	GA55、GA75	Air Filter	1622185501	1
55-90KW 2013.5 Before	GA55+、GA75+、GA90	Air Filter	1613950300	1
55-90KW 2013.5 After	GA55、GA55+、GA75+、GA90	Air Filter	1613950300	1
90-160KWC168 Air End	GA90、GA110	Air Filter 05 Before	1621054799/1635040699	1
	GA90、GA110	Air Filter 06 After	1621510700	1
	GA132、GA160	Air Filter 05 Before	1621054799	1
	GA132、GA160	Air Filter 06 After	1621510700	1
GA110-160KWC190&C200 Air End	GA110	Air Filter	1621737600=1635040800=1630040899	1
GA110-160KWC190&C200 Air End	GA132、GA160	Air Filter	1621737600=1635040800=1630040899	1
200-315 Double	GA200-GA250-GA315	Air Filter 05 Before	1621054799	2
200-315 Double	GA200-GA250-GA315	Air Filter 06 After	1621510700	2
132-160KW VSD+	GA132VSD+-GA160VSD+	Air Filter	1630778399=1623778300	1
200-250 Sangle	GA200 GA250	Air Filter	1621510700	2
315-355 Sangle	GA315 GA355	Air Filter	1621510700	2

What risks do you take from a counterfeit filter?
Non-genuine filter is limited to the material and process, low price at the same time to give up quality assurance, may lead to the decline of compressed air quality, into the air end will cause rotor surface wear, accelerate the production of sludge, so as to shorten the maintenance cycle and the service life of air compressor.
We can supply any parts that Atlas Copco often uses, if you are interested, please send inquiries or consult us!
