Atlas Copco Oil free scroll air compressor SF4ff For Chinese top distributors
Air compressor product introduction

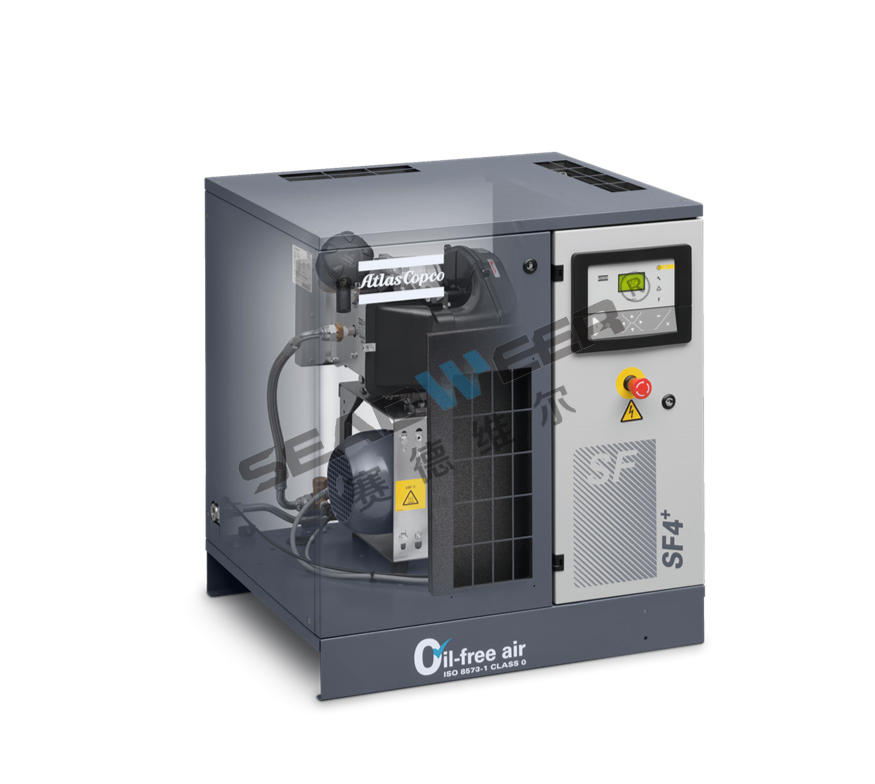

Atlas Copco Oil free scroll air compressor
The Atlas Copco SF4 FF Air Compressor is a high-performance, oil-free scroll compressor designed for applications that require reliable, clean, and dry compressed air. Ideal for industries like dairy farming, where it’s commonly used to power milking robots, the SF4 FF delivers exceptional efficiency and durability.

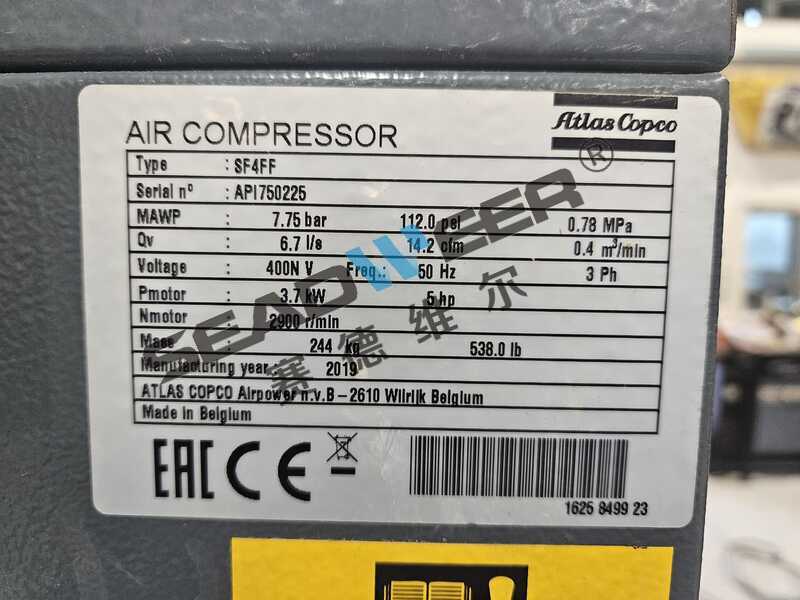

Featuring a 5 HP motor and a max pressure of 7.75 bar (116 PSI), this air compressor provides a consistent 14 CFM of airflow at full pressure, ensuring your equipment receives a steady and reliable air supply. The oil-free design means you can rely on clean, dry air, crucial for sensitive equipment and processes. With its 100% duty cycle, the SF4 FF can operate continuously without rest, making it perfect for demanding environments.
Built with a scroll compressor and belt drive, this model is designed for long-lasting performance and quiet operation, emitting just 57 dBA during use. It’s engineered to run for approximately 8,000 hours, and the compressor element has already been replaced, ensuring optimal functionality and reliability.
Whether you’re looking to power milking robots, or you need a high-quality compressor for other industrial uses, the Atlas Copco SF4 FF is built to deliver. With an integrated aftercooler, air dryer, and air filter, this compressor ensures that the air you use is free from moisture and contaminants, extending the life of your equipment and ensuring superior performance..
Introduction of main parts
Air inlet filter
High-efficiency paper cartridge air inlet filter, eliminating dust and <particles down to 1um.
Automatic regulation
Automatic stop when the required working pressure is reached, avoiding unnecessary energy costs.
High efficiency scroll element
Air-cooled scroll compressor element offering
proven durability and reliability in operation,
in addition to solid efficiency.
IP55 Class F/IE3 motor
Totally enclosed air-cooled IP55 Class F motor,
complying with IE3 & Nema Premium
efficiency standards.
Refrigerant dryer
Compact & optimized integrated refrigerant dryer,
ensuring the delivery of dry air, preventing rust and
corrosion in your compressed air network.
53dB(A) possible, allowing to install the unit closer to the point of use

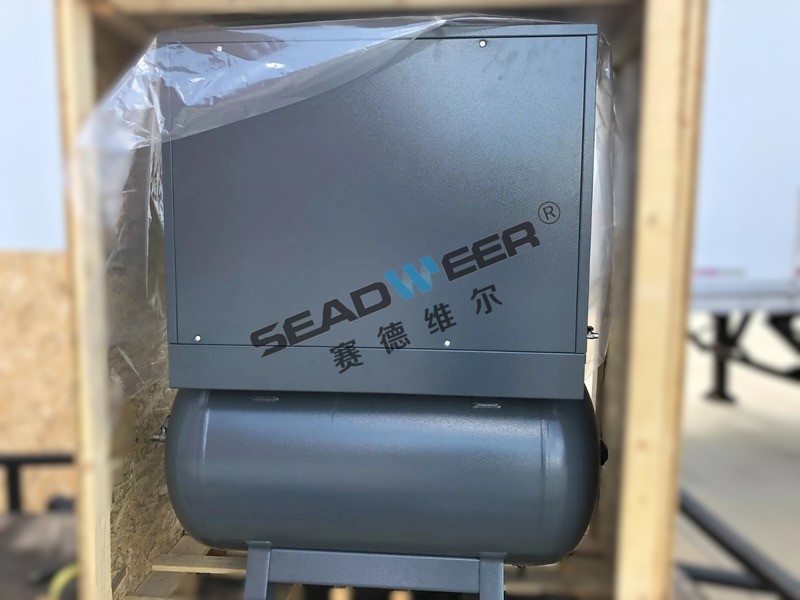

Integrated receiver
Plug and play solution, lower installation costs with 30l, 270l and 500l
tank-mounted options.

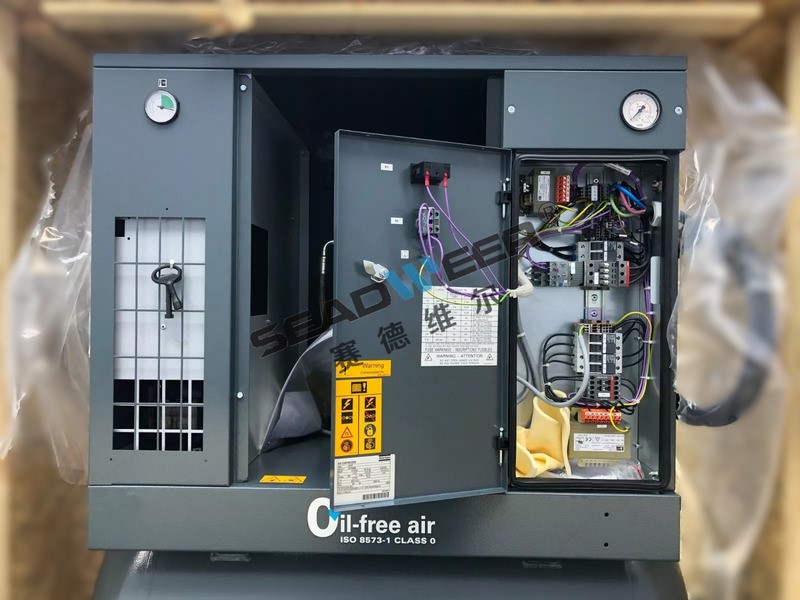

Elektronikon(SF)
Monitoring features include warning indications, maintenance scheduling
and online visualization of running conditions.
Innovative design
The new compact vertical setup enables easy access for maintenance,
improves cooling allowing lower working temperatures and provides
vibration damping.

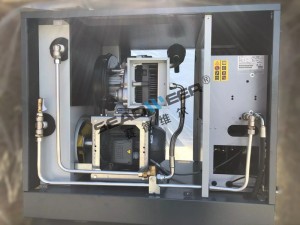

Cooler & piping
An oversized cooler improves the
performance of the unit.
The use of aluminum pipes and the
vertically oversized check valve improve
reliability over lifetime and assure the
high quality of your compressed air.
