Atlas Copco air compressor dealers near me For Atlas ZR160

Short Description:

Parameter	Details
Model	ZR160
Type	Oil-Free Rotary Screw Compressor
Drive Type	Direct Drive
Cooling System	Air-cooled or Water-cooled options available
Air Quality Class	ISO 8573-1 Class 0 (100% Oil-Free Air)
Free Air Delivery (FAD)	160 cfm (4.5 m³/min) at 7 bar <br> 140 cfm (4.0 m³/min) at 8 bar <br> 120 cfm (3.4 m³/min) at 10 bar
Operating Pressure	7 bar, 8 bar, or 10 bar (customizable based on requirements)
Motor Power	160 kW (215 hp)
Motor Type	IE3 Premium Efficiency motor (compliant with international energy standards)
Power Supply	380-415V, 50Hz, 3-phase (varies by region)
Dimensions (L x W x H)	Approx. 3200 x 2000 x 1800 mm (Length x Width x Height)
Weight	Approx. 4000-4500 kg (depending on configuration and options)
Design	Compact, efficient, and reliable system for industrial applications
Integrated Dryer Option	Optional built-in refrigeration dryer for improved air quality
Air Discharge Temperature	10°C to 15°C above ambient temperature (depending on environmental conditions)
Energy-Efficient Features	Variable Speed Drive (VSD) models available for energy saving and load regulation <br> High-efficiency heat exchangers for optimized cooling

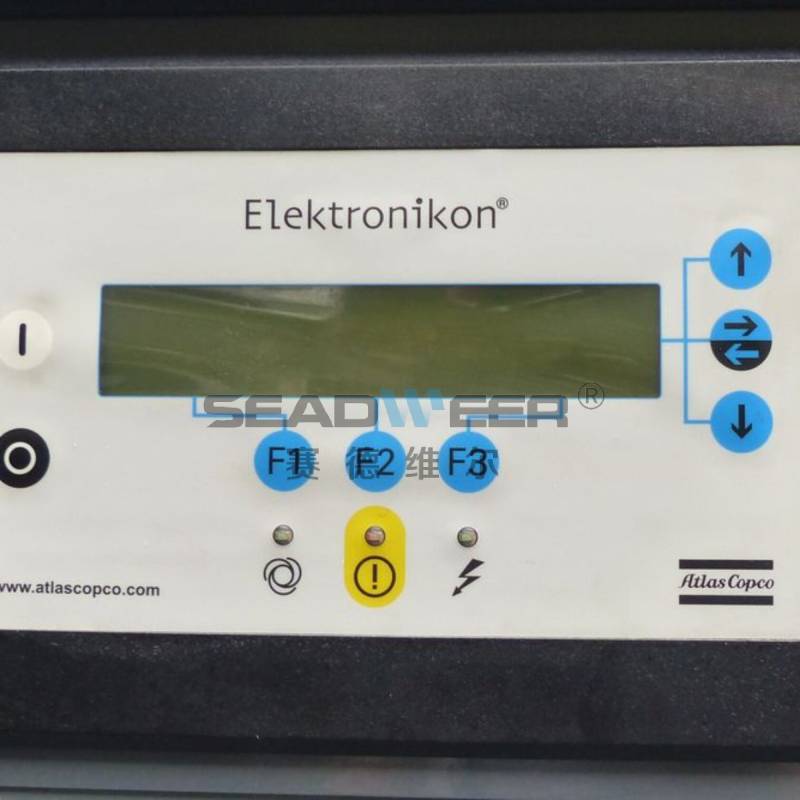

Control System	Elektronikon® Mk5 control system for easy monitoring and management <br> Real-time performance data, pressure control, and fault diagnosis
Maintenance Interval	Typically every 2000 hours of operation, depending on conditions
Noise Level	72-74 dB(A), depending on configuration and environment
Applications	Ideal for industries requiring clean, oil-free compressed air such as pharmaceuticals, food & beverage, electronics, and textiles
Certifications and Standards	ISO 8573-1 Class 0 (Oil-Free Air) <br> ISO 9001 (Quality Management System) <br> ISO 14001 (Environmental Management System) <br> CE Marked

Send email to us

Product Detail

Product Tags

Air compressor product introduction

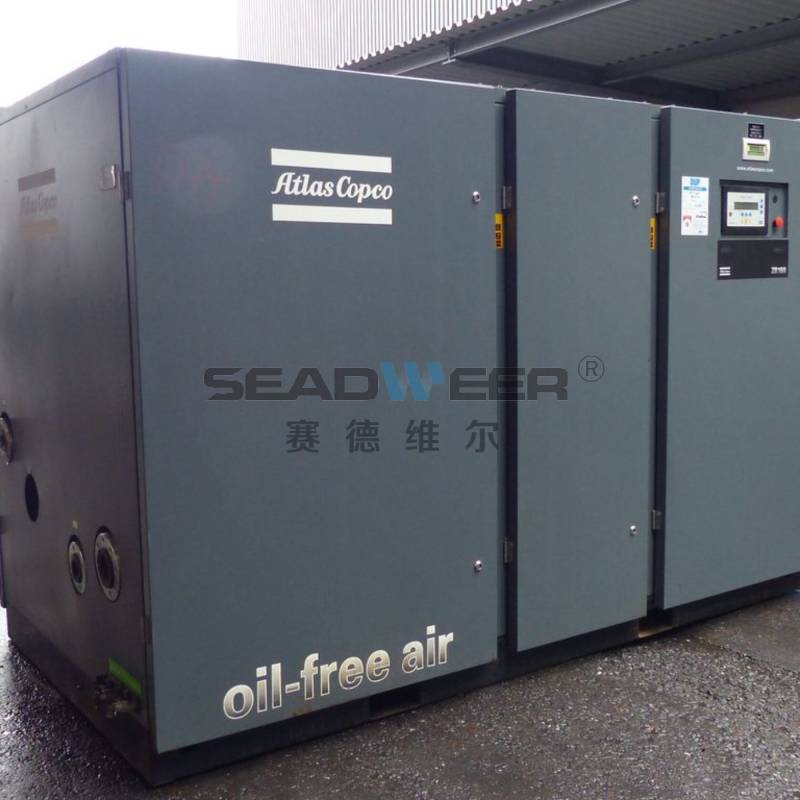

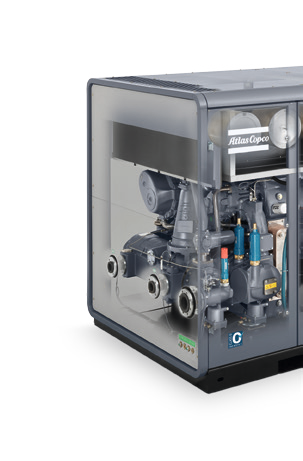

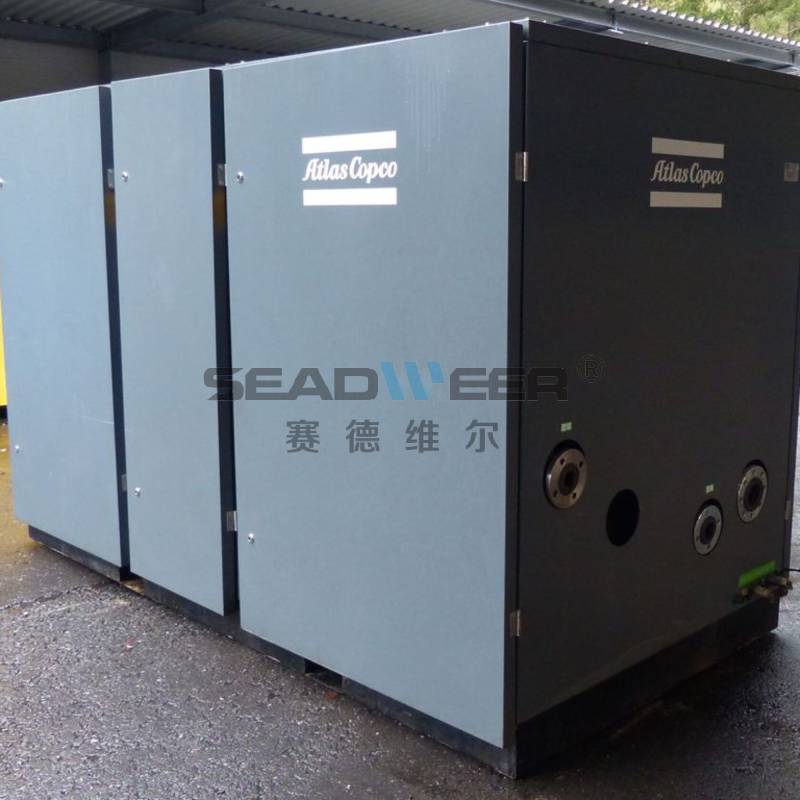

The Atlas Copco ZR160 is a highly efficient and reliable oil-free rotary screw air compressor, designed for industries that require clean, high-quality compressed air. Whether you're in pharmaceuticals, food & beverage, electronics, or any other sector where air purity is crucial, the ZR160 ensures top performance with zero oil contamination.

With its advanced technology, energy-saving features, and ease of maintenance, the ZR160 is the ideal choice for applications that demand high-quality, oil-free air.
Key Features
100% Oil-Free Air: The ZR160 delivers clean, oil-free air by ISO 8573-1 Class 0, making it perfect for sensitive applications.
Energy-Efficient: Designed with energy-saving technology, including options like Variable Speed Drive (VSD) to adjust energy consumption according to demand.
Direct Drive System: The ZR160 operates with a direct drive mechanism, which increases reliability and reduces maintenance costs.
High Performance: This compressor, with up to 160 cfm (4.5 m³/min) at 7 bar, is engineered for high-performance operations and provides a steady and reliable air supply.
Compact & Robust: The ZR160's compact and durable design makes it easy to install and maintain. It is built for industrial environments.
Low Operating Costs: The ZR160 minimizes downtime with easy-to-service components and long service intervals.
